Making line plots
Import packages
[1]:
import numpy as np
import matplotlib.pyplot as plt
import os
# importing plons modules
import plons
import plons.SmoothingKernelScript as sk
import plons.PhysicalQuantities as pq
import plons.ConversionFactors_cgs as cgs
Setting information about data
[2]:
prefix = "wind"
loc = "Model"
dumpnumber = 600
dump = os.path.join(loc, f"{prefix}_{dumpnumber:06d}")
Retrieving the data
Creating the directory to store the models
[3]:
!mkdir -p $loc
Downloading the data
[4]:
%%capture
if not os.path.exists(dump):
!wget "https://github.com/Ensor-code/phantom-models/raw/refs/heads/main/Esseldeurs+2023/BinaryHighLucy/wind_00600?download=" --output-document $dump
infile = os.path.join(loc, f"{prefix}.in")
if not os.path.exists(infile):
!wget "https://raw.githubusercontent.com/Ensor-code/phantom-models/refs/heads/main/Esseldeurs%2B2023/BinaryHighLucy/wind.in" --output-document $infile
setupfile = os.path.join(loc, f"{prefix}.setup")
if not os.path.exists(setupfile):
!wget "https://raw.githubusercontent.com/Ensor-code/phantom-models/refs/heads/main/Esseldeurs%2B2023/BinaryHighLucy/wind.setup" --output-document $setupfile
Loading setup and dump
[5]:
setup = plons.LoadSetup(loc, prefix)
[6]:
dumpData = plons.LoadFullDump(dump, setup)
Making x and z lines on which to smooth
[7]:
n = 200
rx = np.array((np.linspace(-150, 150, n), np.zeros(n), np.zeros(n))).transpose()*cgs.au
theta = pq.getPolarAngleCompanion(dumpData['posComp'][0], dumpData['posComp'][1])
rz = np.array((np.zeros(n), np.zeros(n), np.linspace(-150, 150, n))).transpose()*cgs.au
Smoothing the data on the lines
[8]:
smoothx = sk.getSmoothingKernelledPix(100, dumpData, ['rho'], sk.rotatePixCoordAroundZ(theta, rx))
smoothz = sk.getSmoothingKernelledPix(100, dumpData, ['rho'], rz)

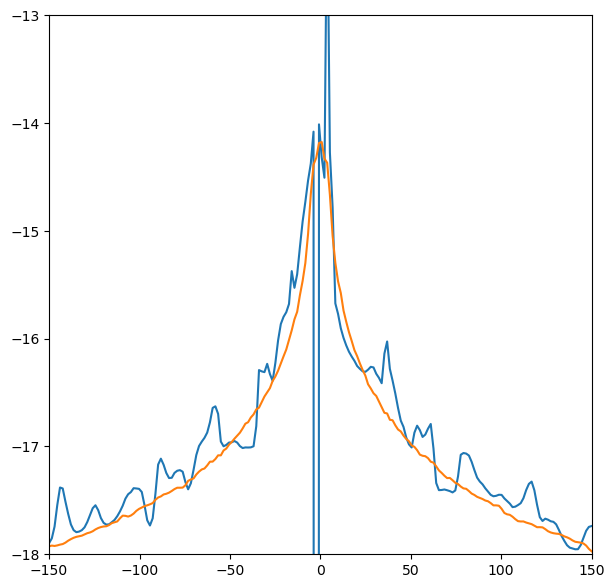

Plotting the lines
[9]:
fig, ax = plt.subplots(1, figsize=(7, 7))
ax.plot(rx[:,0]/cgs.au, np.log10(smoothx["rho"]+1e-99))
ax.plot(rz[:,2]/cgs.au, np.log10(smoothz["rho"]+1e-99))
ax.set_xlim(-150, 150)
ax.set_ylim(-18, -13)
plt.show()
