Calc HRM using plons
[1]:
import plons
import os
import numpy as np
import matplotlib.pyplot as plt
# import necessary plons scripts
import plons.ConversionFactors_cgs as cgs
import plons.GeometricalFunctions as gf
import plons.AccrDisk as ad
[6]:
'''
Calculate scale height and disk mass ifo radius, and estimate radius, using the median scale height of $numberOfThetas theta directions
Make plots
Save data in txt file
input
dumpData input data, used for density and position
run modelName, used to save in correct locations
dump dumpNumber, used to save under correct name
'''
def fullThetaCalculations(dumpData,run,dump,xH, printOut = False):
# Choose which and how many r and theta values you want to use to calculate scale heights and disk mass and for plot of rho vs h
n_grid = 10000
maxH = 1.5 *cgs.au
numberOfThetas = 10
thetaMin = 0
thetaMax = 2*np.pi
thetaArray = np.linspace(thetaMin,(numberOfThetas-1)/numberOfThetas*thetaMax,numberOfThetas)
crit = 0.3
# lowerR = 0.1 #to test
# r_step = 0.1 #to test
lowerR = 0.02
r_step = 0.01
# Calculate arrays with radii, disk mass, relative addes mass, and scale heights
r_array,totalMassDisk,rel_mass_added,SH_array,RhoMax_array,Sigma_array,SigmaTheor_array,Tau_array,TauTheor_array = ad.get_SH_diskMass_radius(lowerR,r_step,thetaArray,dumpData,maxH,n_grid,run,crit,xH,phiQuadr = False, printOut = printOut)
'''
Write data for full theta region in txt file infoAccrDisk_wind_00....txt
'''
testLimit = crit
title = os.path.join(run,'plotsAnalysis/infoAccrDisk_wind_00'+str(dump)+'_'+xH+'.txt')
with open (title,'w') as f:
f.write('Model '+str(run)+'wind_00'+str(dump)+'\n')
f.write('Data analysis accretion disks')
f.write('\n')
f.write('\n')
f.write('for rstep '+ str(r_step)+ ' au (=racc) and limit of '+ str(testLimit)+':'+'\n')
f.write('the estimated radius is: '+ str(np.round(r_array[np.where(rel_mass_added/r_step<testLimit)][0]/cgs.au,3))+' au'+'\n')
f.write('the estimated total mass is: '+ str(np.round(totalMassDisk[np.where(rel_mass_added/r_step<testLimit)][0]/cgs.Msun,11))+' Msun'+'\n')
f.write('the estimated max scale height is: '+ str(np.round(SH_array[np.where(rel_mass_added/r_step<testLimit)][0]/cgs.au,3))+' au'+'\n')
f.write('\n')
f.write('\n')
f.write('for rstep '+ str(r_step)+ ' au (=racc):'+'\n')
names = ['r [au]', 'SH [au]', 'Rho_max [g/cm^3]','Mtot [Msun]', 'Mrel/rstep []', 'Sigma []','Sigma Theor []','OptDepth []','OptDepthTheor []']
f.write("{: <30} {: <30} {: <30} {: <30} {: <30} {: <30} {: <30} {: <30} {: <30}".format(*names))
col_format = "{:<31}" * 9 + "\n" # 5 left-justfied columns with 15 character width
f.write('\n')
for i in zip(np.round(r_array/cgs.au,2),np.round(SH_array/cgs.au,4),np.round(RhoMax_array,16),np.round(totalMassDisk/cgs.Msun,13),np.round(rel_mass_added/r_step,3),np.round(Sigma_array,4),np.round(SigmaTheor_array,4),np.round(Tau_array,3),np.round(TauTheor_array,3)):
f.write(col_format.format(*i))
'''
Construct plots
'''
'''
# Make rho-h plots for each theta with varying r
But maybe dont ;)
'''
# plotRhoVert_fixedTheta(r_array[::10]/cgs.au,thetaArray,dumpData,maxH,n_grid,run,xH)
'''

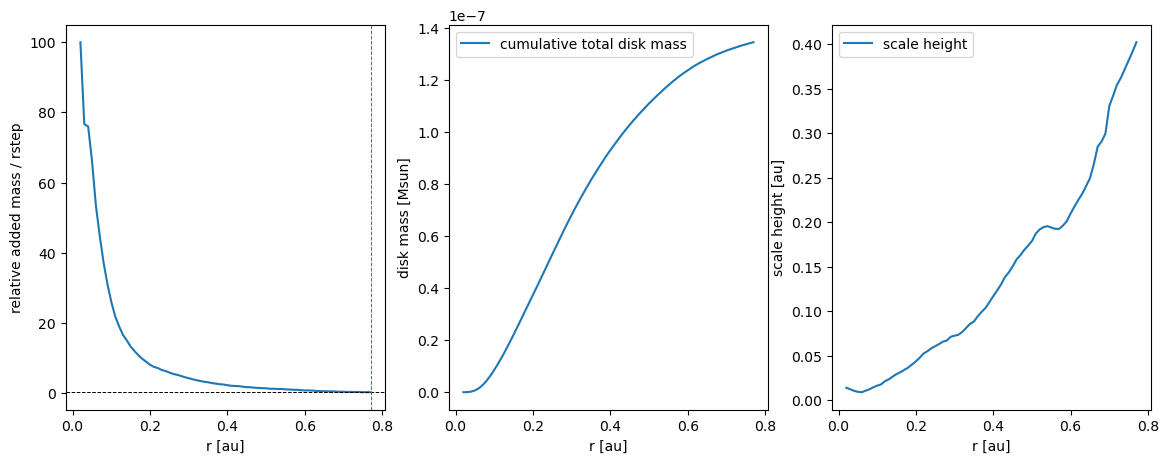

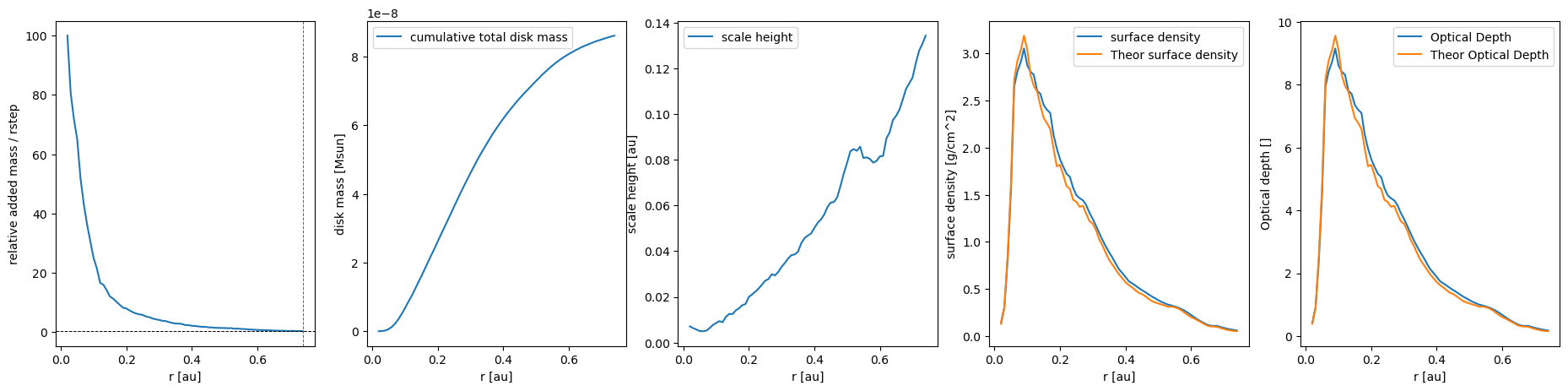

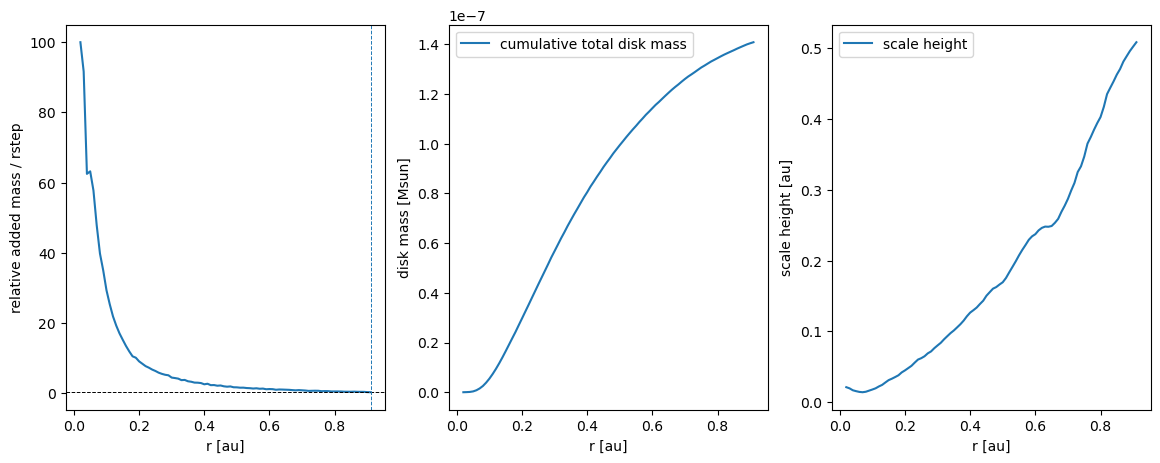

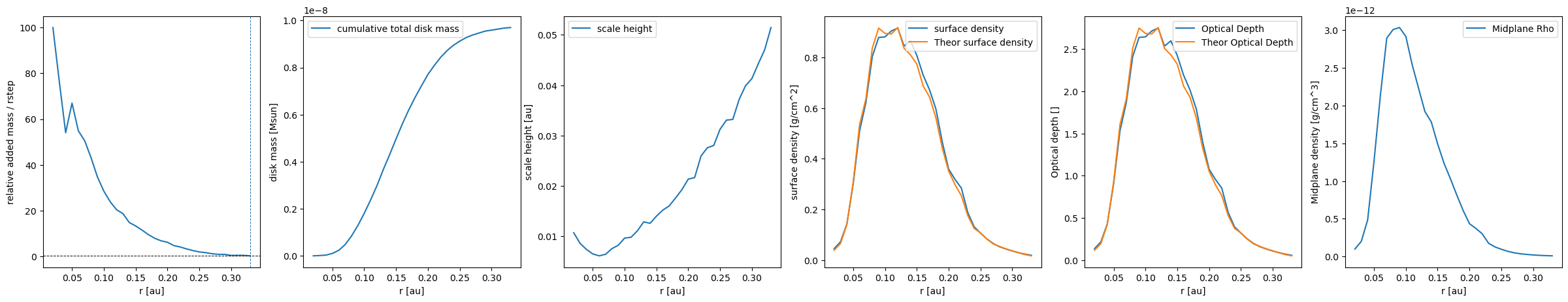

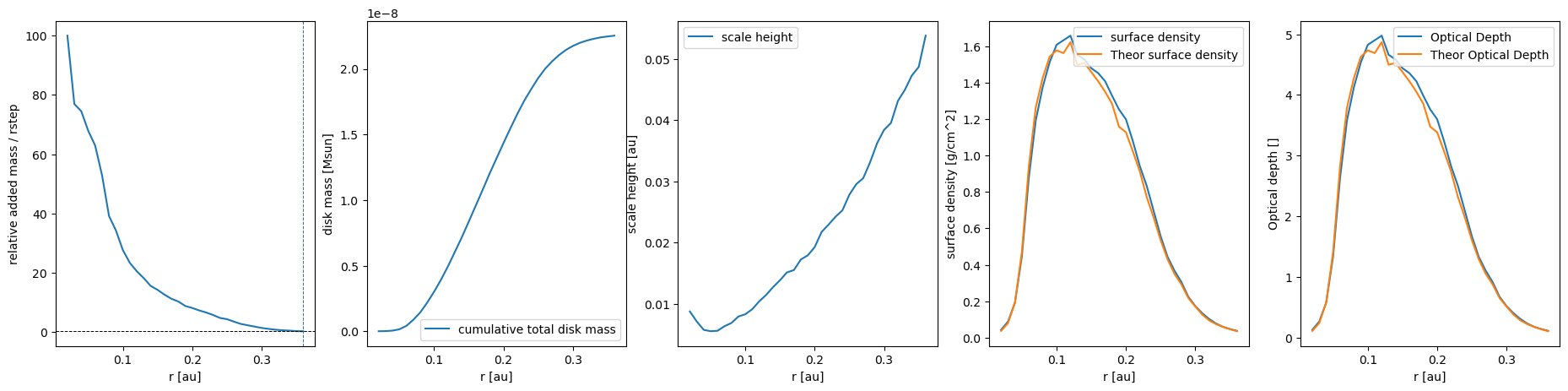

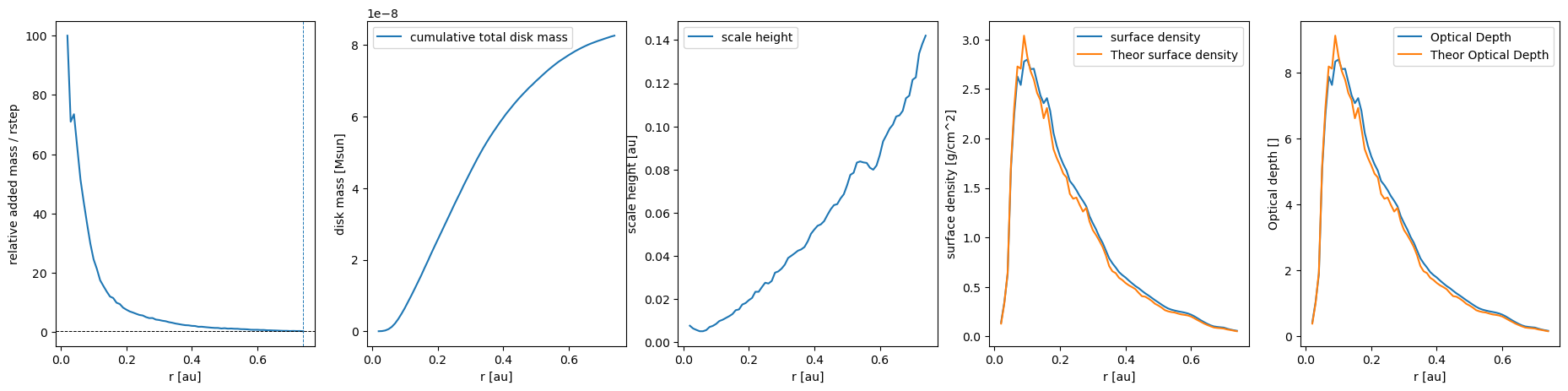

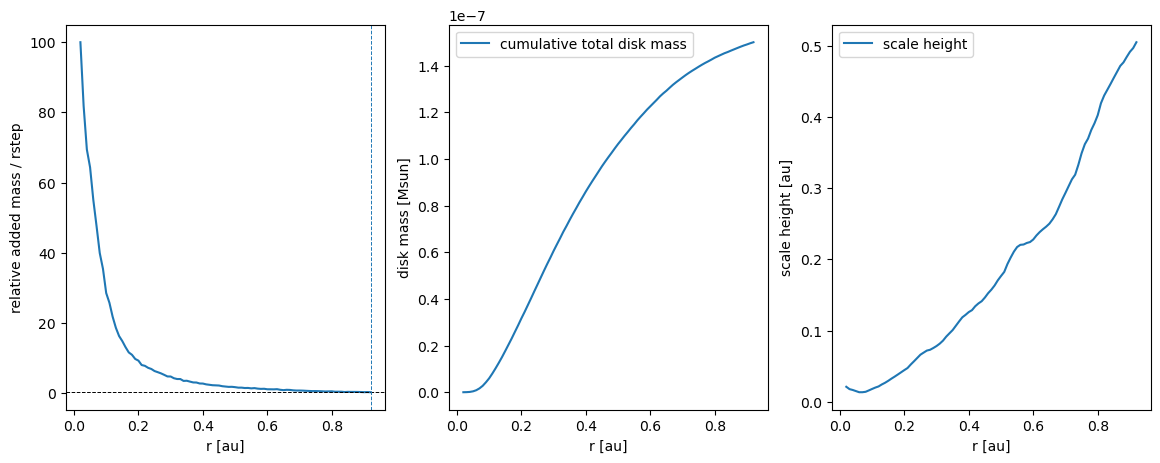

Make plots of relative added mass, total disk mass, midplane rho, and scale heights ifo r
'''
if xH == '1H':
fig, axs = plt.subplots(nrows = 1, ncols= 6 , figsize=(30, 5))
else:
fig, axs = plt.subplots(nrows = 1, ncols= 3 , figsize=(14, 5))
ad.plot_relAddedMass(axs[0], r_array,rel_mass_added,r_step,crit)
ad.plot_totalDiskMass(axs[1], r_array,totalMassDisk)
ad.plot_scaleHeights(axs[2], r_array,SH_array)
if xH == '1H':
ad.plot_surfDensity(axs[3],r_array,Sigma_array,SigmaTheor_array)
ad.plot_opticalDepth(axs[4],r_array,Tau_array,TauTheor_array)
ad.plot_rhoMax(axs[5],r_array,RhoMax_array)
return fig
[3]:
'''
Calculate scale height and disk mass ifo radius, and estimate radius, using the median scale height of $numberOfThetas theta directions; in 4 different theta quadrants
Make plots
Save data in 4 txt files
input
dumpData input data, used for density and position
run modelName, used to save in correct locations
dump dumpNumber, used to save under correct name
'''
def thetaRegionsCalculations(dumpData,run,dump,xH):
'''
Calculations of scale height, mass estimates, radius
For 4 different theta regions
'''
# Choose which and how many r and theta values you want to use to calculate scale heights and disk mass and for plot of rho vs h
n_grid = 10000
# maxH = 1.5 * cgs.au
maxH = 3 * cgs.au
numberOfThetas = 10 #Number of thetas withing one array
'''
Divide into 4 different theta regions
'''
# Away from AGB
thetaMin1 = -1./4. *np.pi
thetaMax1 = 1./4. *np.pi
thetaArray1 = np.linspace(thetaMin1,thetaMax1,numberOfThetas)
# Make sure all theta's are positive
i = 0
for theta in thetaArray1:
if theta < 0:
thetaArray1[i] = thetaArray1[i]+2*np.pi
i = i+1
# Positive y --> bow shock side (in front of companion)
thetaMin2 = 1./4. * np.pi
thetaMax2 = 3./4. * np.pi
thetaArray2 = np.linspace(thetaMin2,thetaMax2,numberOfThetas)
# Towards AGB
thetaMin3 = 3./4. * np.pi
thetaMax3 = 5./4. * np.pi
thetaArray3 = np.linspace(thetaMin3,thetaMax3,numberOfThetas)
# Negative y --> flow behind companion
thetaMin4 = 5./4. * np.pi
thetaMax4 = 7./4. * np.pi
thetaArray4 = np.linspace(thetaMin4,thetaMax4,numberOfThetas)
crit = 0.3
# lowerR = 0.1 #to test
# r_step1 = 0.1 #to test
lowerR = 0.02
r_step1 = 0.01
if run == '/lhome/jolienm/Documents/TierModels/R_Aql/cooling/binariesInPaper/finalAccrDisks/v10e00_T3000_res8_racc01/':
r_step3 = 0.015 # Was nescessary for my model v10e00
else:
r_step3 = r_step1
'''
Calculate scale heights and mass estimates at each r; and estimate final radius
Make text files with important info to make plots
for different theta regimes
'''
testLimit = crit
# calculate scale height and mass estimates at each r for this setup
r_array1,totalMassDisk1,rel_mass_added1,SH_array1,RhoMax_array1,Sigma_array1,SigmaTheor_array1,Tau_array1,TauTheor_array1 = ad.get_SH_diskMass_radius(lowerR,r_step1,thetaArray1,dumpData,maxH,n_grid,run,crit,xH,phiQuadr=True)
title = os.path.join(run,'plotsAnalysis/infoAccrDisk_theta~0_wind_00'+str(dump)+'_'+xH+'.txt')
ad.writeFile(title,r_step1,testLimit,r_array1,rel_mass_added1,totalMassDisk1,SH_array1,RhoMax_array1,Sigma_array1,SigmaTheor_array1,Tau_array1,TauTheor_array1)
r_array2,totalMassDisk2,rel_mass_added2,SH_array2,RhoMax_array2,Sigma_array2,SigmaTheor_array2,Tau_array2,TauTheor_array2 = ad.get_SH_diskMass_radius(lowerR,r_step1,thetaArray2,dumpData,maxH,n_grid,run,crit,xH,phiQuadr=True)
title = os.path.join(run,'plotsAnalysis/infoAccrDisk_theta~pi:2_wind_00'+str(dump)+'_'+xH+'.txt')
ad.writeFile(title,r_step1,testLimit,r_array2,rel_mass_added2,totalMassDisk2,SH_array2,RhoMax_array2,Sigma_array2,SigmaTheor_array2,Tau_array2,TauTheor_array2)
r_array3,totalMassDisk3,rel_mass_added3,SH_array3,RhoMax_array3,Sigma_array3,SigmaTheor_array3,Tau_array3,TauTheor_array3 = ad.get_SH_diskMass_radius(lowerR,r_step3,thetaArray3,dumpData,maxH,n_grid,run,crit,xH,phiQuadr=True)
title = os.path.join(run,'plotsAnalysis/infoAccrDisk_theta~pi_wind_00'+str(dump)+'_'+xH+'.txt')
ad.writeFile(title,r_step3,testLimit,r_array3,rel_mass_added3,totalMassDisk3,SH_array3,RhoMax_array3,Sigma_array3,SigmaTheor_array3,Tau_array3,TauTheor_array3)
r_array4,totalMassDisk4,rel_mass_added4,SH_array4,RhoMax_array4,Sigma_array4,SigmaTheor_array4,Tau_array4,TauTheor_array4 = ad.get_SH_diskMass_radius(lowerR,r_step1,thetaArray4,dumpData,maxH,n_grid,run,crit,xH,phiQuadr=True)
title = os.path.join(run,'plotsAnalysis/infoAccrDisk_theta~pi3:2_wind_00'+str(dump)+'_'+xH+'.txt')
ad.writeFile(title,r_step1,testLimit,r_array4,rel_mass_added4,totalMassDisk4,SH_array4,RhoMax_array4,Sigma_array4,SigmaTheor_array4,Tau_array4,TauTheor_array4)
'''

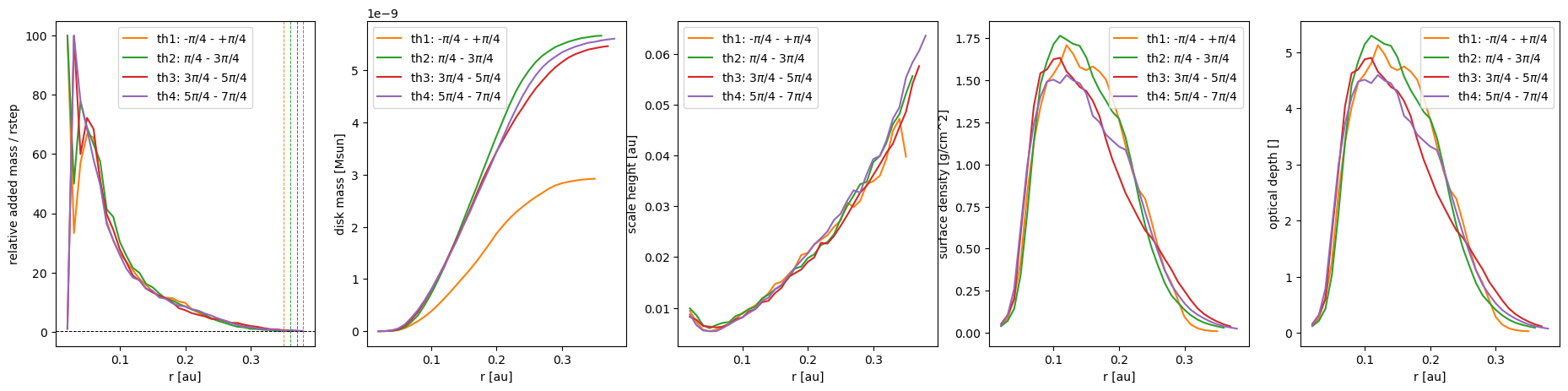

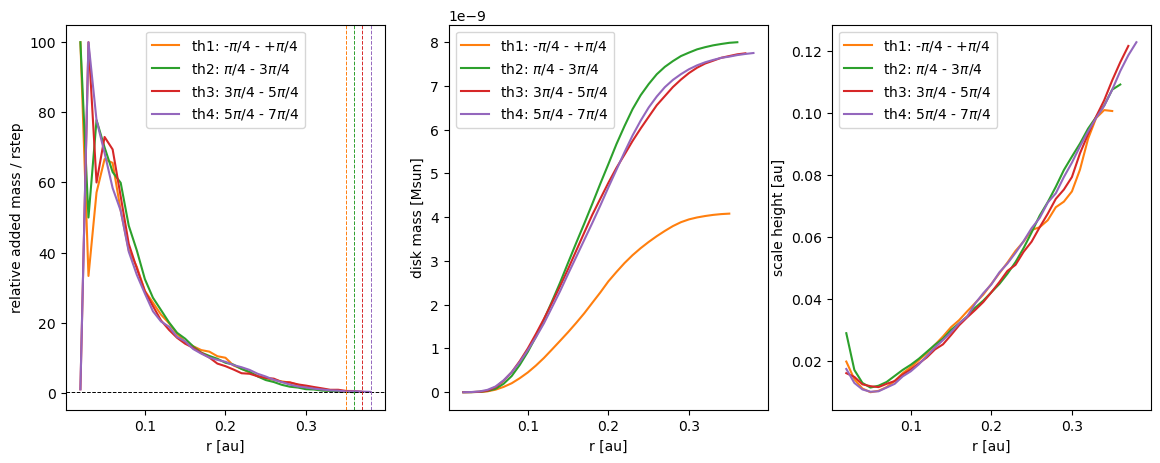

Construct plots
'''
if xH == '1H':
fig, axs = plt.subplots(nrows = 1, ncols= 6 , figsize=(23, 5))
else:
fig, axs = plt.subplots(nrows = 1, ncols= 3 , figsize=(14, 5))
ad.plot_relAddedMass_4theta(axs[0],r_array1,r_array2,r_array3,r_array4,rel_mass_added1,rel_mass_added2,rel_mass_added3,rel_mass_added4,r_step1,r_step3,crit)
ad.plot_totalDiskMass_4theta(axs[1],r_array1,r_array2,r_array3,r_array4,totalMassDisk1,totalMassDisk2,totalMassDisk3,totalMassDisk4)
ad.plot_scaleHeights_4theta(axs[2],r_array1,r_array2,r_array3,r_array4,SH_array1,SH_array2,SH_array3,SH_array4)
if xH == '1H':
ad.plot_surfDensity_4theta(axs[3],r_array1,r_array2,r_array3,r_array4,Sigma_array1,Sigma_array2,Sigma_array3,Sigma_array4)
ad.plot_opticalDepth_4theta(axs[4],r_array1,r_array2,r_array3,r_array4,Tau_array1,Tau_array2,Tau_array3,Tau_array4)
ad.plot_rhoMax_4theta(axs[5], r_array1,r_array2,r_array3,r_array4,RhoMax_array1,RhoMax_array2,RhoMax_array3,RhoMax_array4)
return fig
[4]:
'''
Main definition to do all calculations
input
run modelName, used to save in correct locations
dump dumpNumber, used to save under correct name
scaleHeightList list with 1H, 2H or one of both, to know for which scale height calculations need to be done
full, quadrants boolians to know if calculations should be done for full thetaregion and/or quadrants
'''
def main(run,dump,scaleHeightList,full=True,quadrants=True,printOut = False):
'''
Load in data
'''
setup = plons.LoadSetup(run, "wind")
dumpData = plons.LoadFullDump(os.path.join(run, f"wind_%05d" % dump), setup)
# Coordinate transformation: translation to rcomp + rotation such that AGB is on positive x-axis
# Coordinate transformation such that comp is at (0,0) and AGB at -x
dumpData['new_x'],dumpData['new_y'],dumpData['new_r'] = ad.calc_new_position(dumpData['position'][:,0],dumpData['position'][:,1],dumpData)
phi = gf.calcPhi(dumpData['new_x'],dumpData['new_y'])
dumpData['new_Phi'] = np.where(phi < 0, phi + 2 * np.pi, phi)
'''
Test if coordinate transformation is correct
'''
# testPositionAndTheta(dumpData,run,dump)
'''
Perform calculations for full theta region and/or 4 different theta regions; make plots and write txt files with results
'''
for xH in scaleHeightList:
if full==True:
if printOut: print('Calculations full theta region:')
fig = fullThetaCalculations(dumpData,run,dump,xH, printOut)
fig.savefig(run+'plotsAnalysis/Disk_wind_%05d'%(dump)+'_'+xH+'.png', bbox_inches='tight')
if quadrants==True:
if printOut: print('Calculations for different theta regions:')
fig = thetaRegionsCalculations(dumpData,run,dump,xH)
fig.savefig(run+f'plotsAnalysis/Theta_rstep_wind_%05d'%(dump)+'_'+xH+'.png', bbox_inches='tight')
[5]:
'''
Example
'''
run = '/STER/matse/Phantom/Pi1Gru/Pi1Gru/'
dump = 101

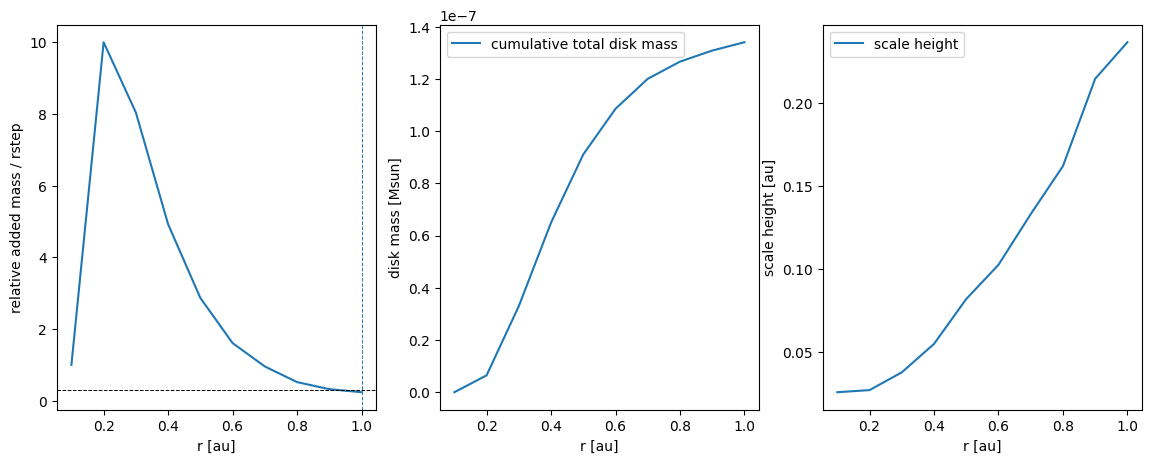

main(run,dump,['1H'],full=True,quadrants=True,printOut=True)
Calculations full theta region:
---------
r 0.1 au
scale height is 0.026027602760276037
mass added [Msun]: 0.0
relMass_added/rstep (rico) = 1.0
---------
r 0.2 au
scale height is 0.027302730273027292
mass added [Msun]: 6.468131334578011e-09
relMass_added/rstep (rico) = 10.0
---------
r 0.3 au
scale height is 0.03795379537953801
mass added [Msun]: 2.65079337061925e-08
relMass_added/rstep (rico) = 8.039
---------
r 0.4 au
scale height is 0.05505550555055506
mass added [Msun]: 3.1982221183316454e-08
relMass_added/rstep (rico) = 4.924
---------
r 0.5 au
scale height is 0.08205820582058203
mass added [Msun]: 2.6116913172112218e-08
relMass_added/rstep (rico) = 2.868
---------
r 0.6 au
scale height is 0.10261026102610261
mass added [Msun]: 1.7465583855585963e-08
relMass_added/rstep (rico) = 1.609
---------
r 0.7 au
scale height is 0.13306330633063307
mass added [Msun]: 1.1486228188608306e-08
relMass_added/rstep (rico) = 0.957
---------
r 0.8 au
scale height is 0.1619411941194119
mass added [Msun]: 6.582178990351427e-09
relMass_added/rstep (rico) = 0.52
---------
r 0.9 au
scale height is 0.2144464446444644
mass added [Msun]: 4.23605578586973e-09
relMass_added/rstep (rico) = 0.324
---------
r 1.0 au
scale height is 0.2364236423642364
mass added [Msun]: 3.1933343616556427e-09
relMass_added/rstep (rico) = 0.238
-------------------------------------------------------------
estimate of r of the accretion disk is 1.0 au

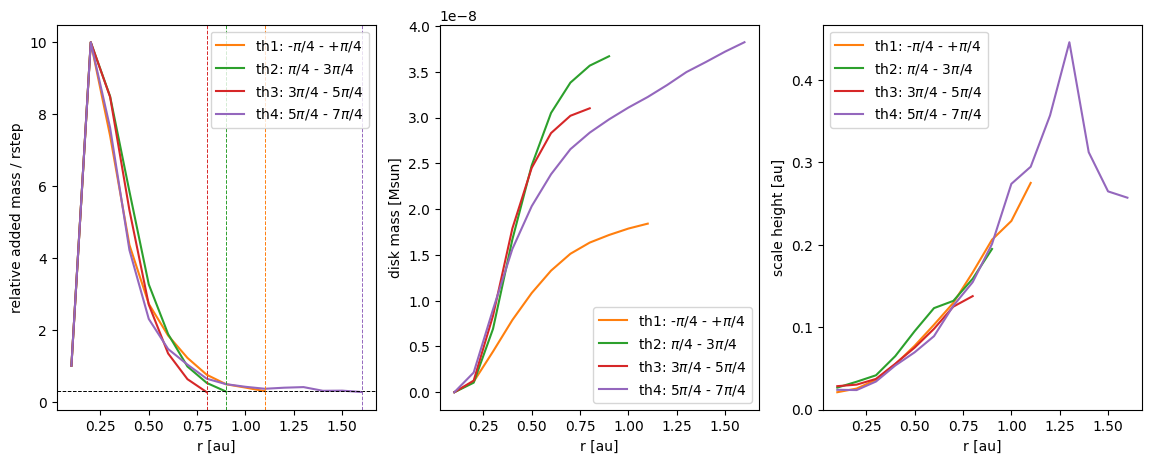

Calculations for different theta regions:
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
[7]:
dir = '/lhome/jolienm/Documents/TierModels/R_Aql/cooling/binariesInPaper/finalAccrDisks/'
run = os.path.join(dir, 'v20e00_T3000_res8_racc01/')
dump = 120

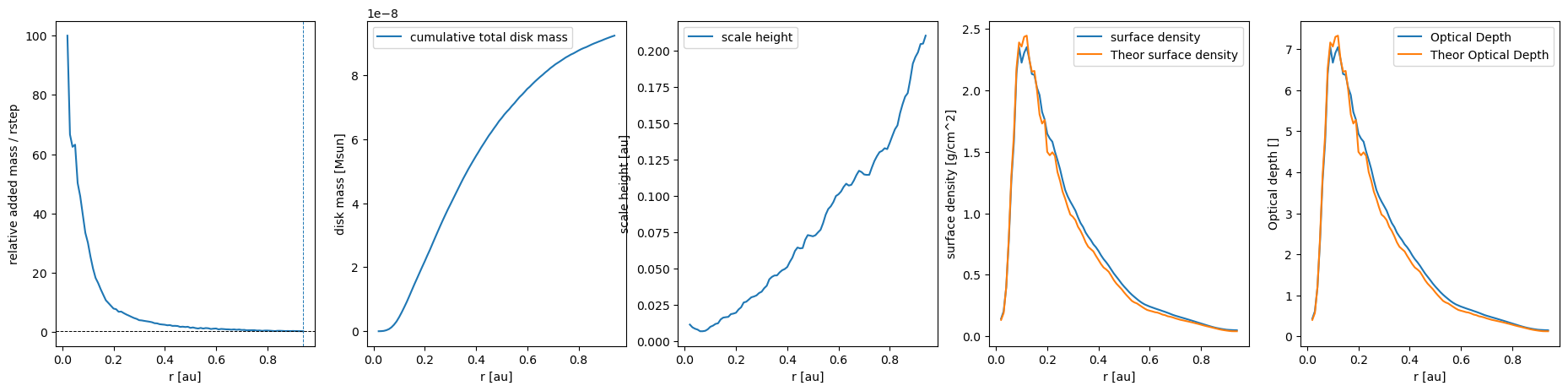

main(run,dump,['1H'],full = True, quadrants=False)

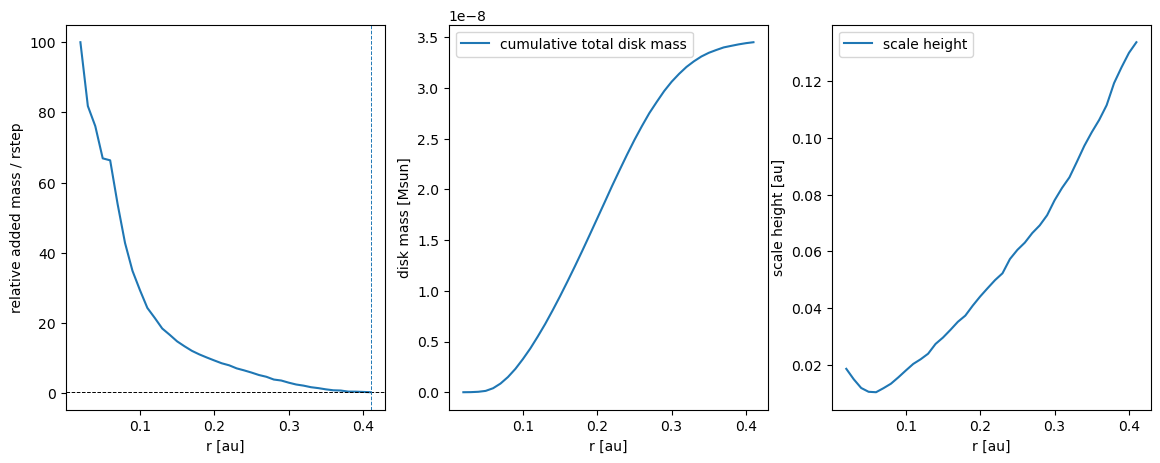

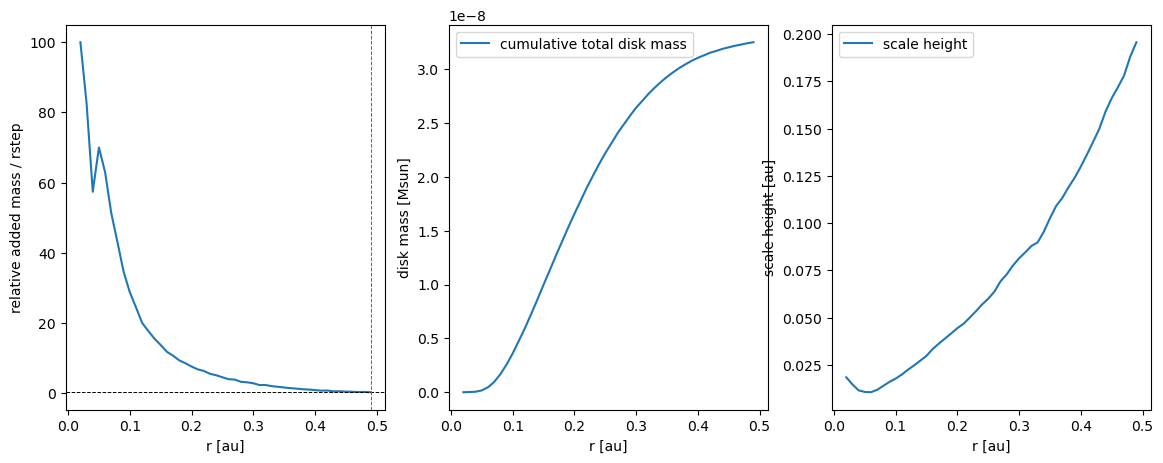

[11]:
dir = '/lhome/jolienm/Documents/TierModels/R_Aql/cooling/binariesInPaper/finalAccrDisks/'
run = os.path.join(dir, 'v05e00_T3000_res8_racc01/')
dump = 270

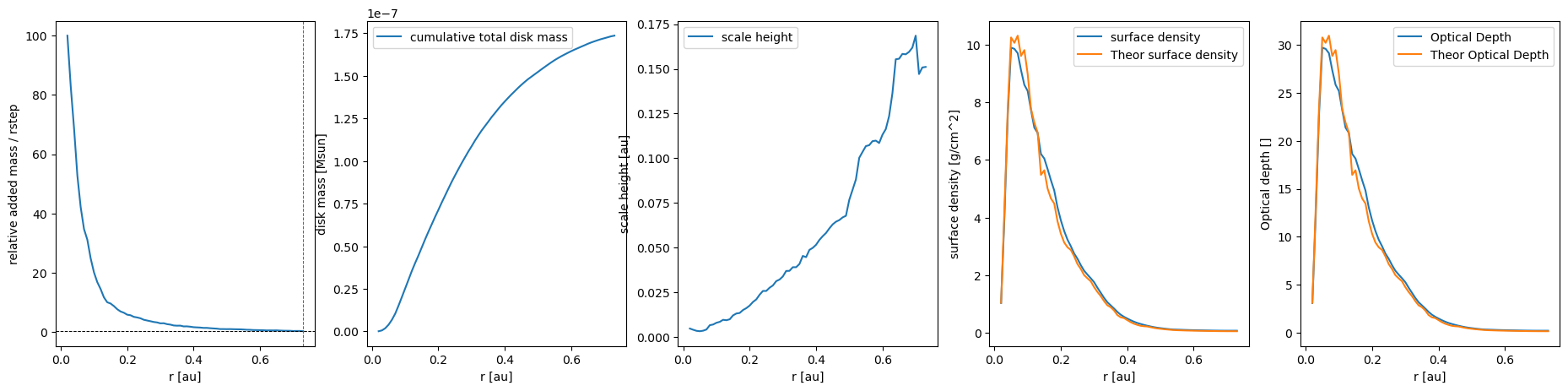

main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 284
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 300
main(run,dump,['1H','2H'],full=True,quadrants=False)

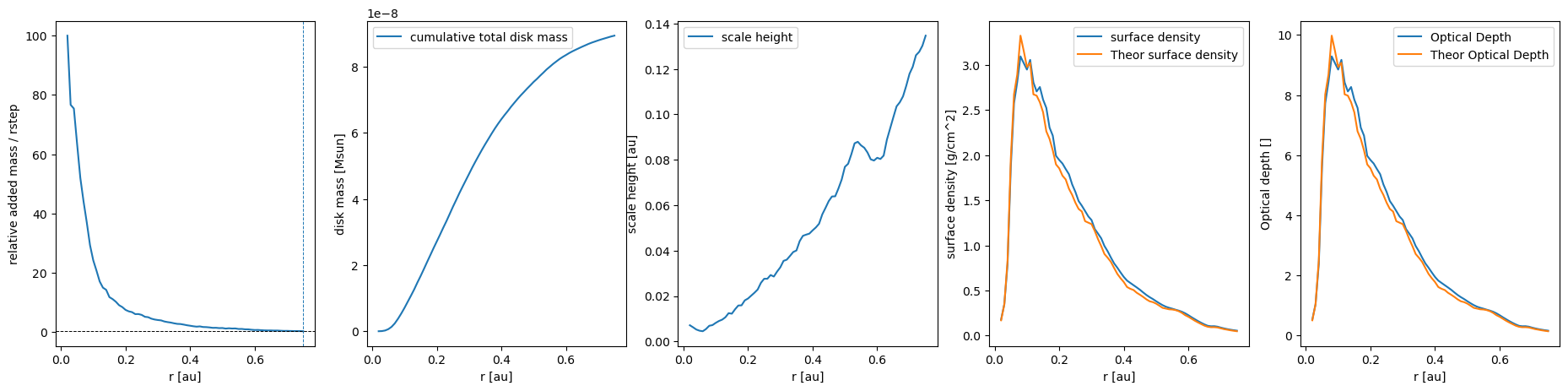

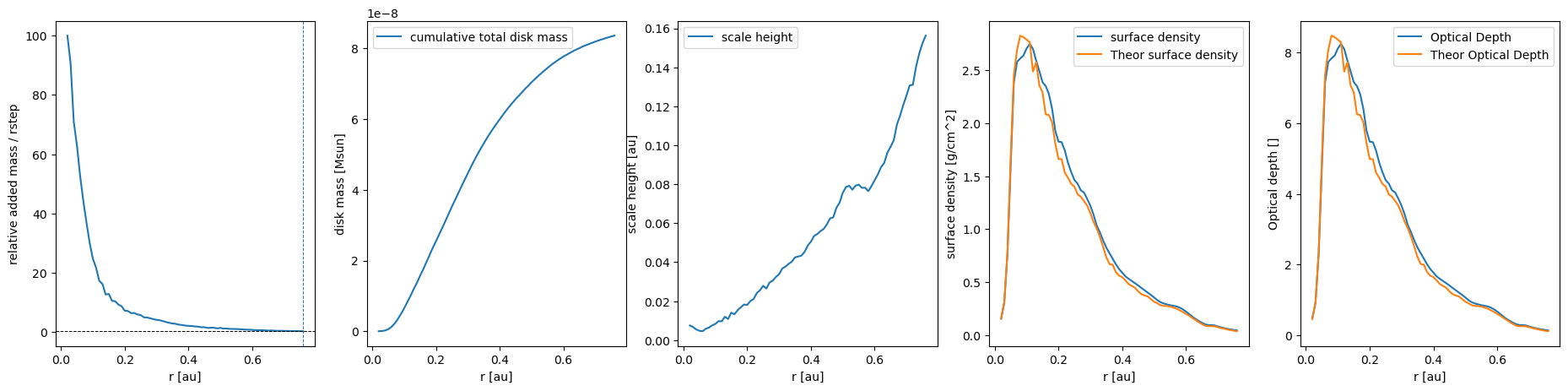

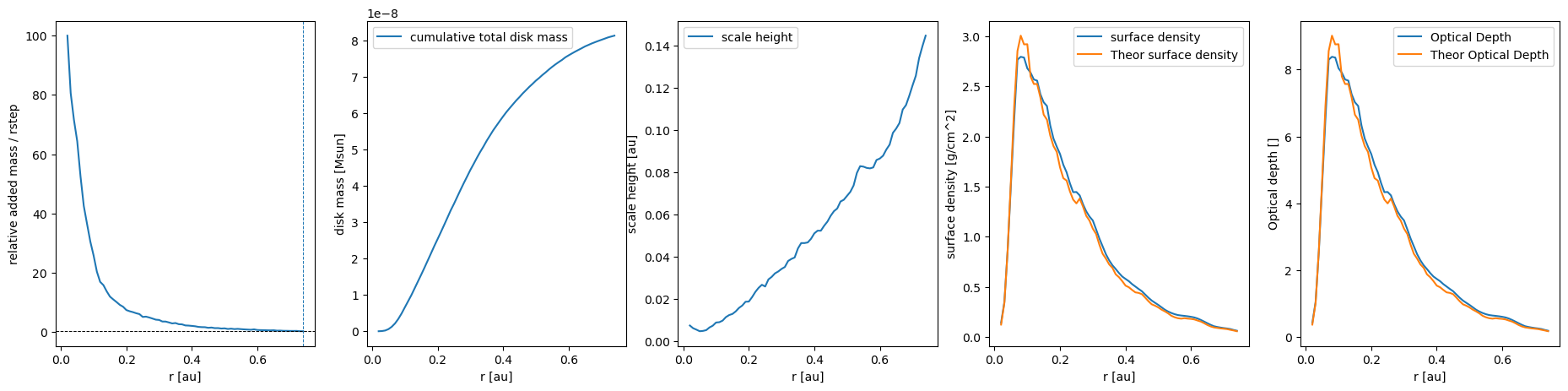

[6]:
dir = '/lhome/jolienm/Documents/TierModels/R_Aql/cooling/binariesInPaper/finalAccrDisks/'
run = os.path.join(dir, 'v10e00_T3000_res8_racc01/')
dump = 272

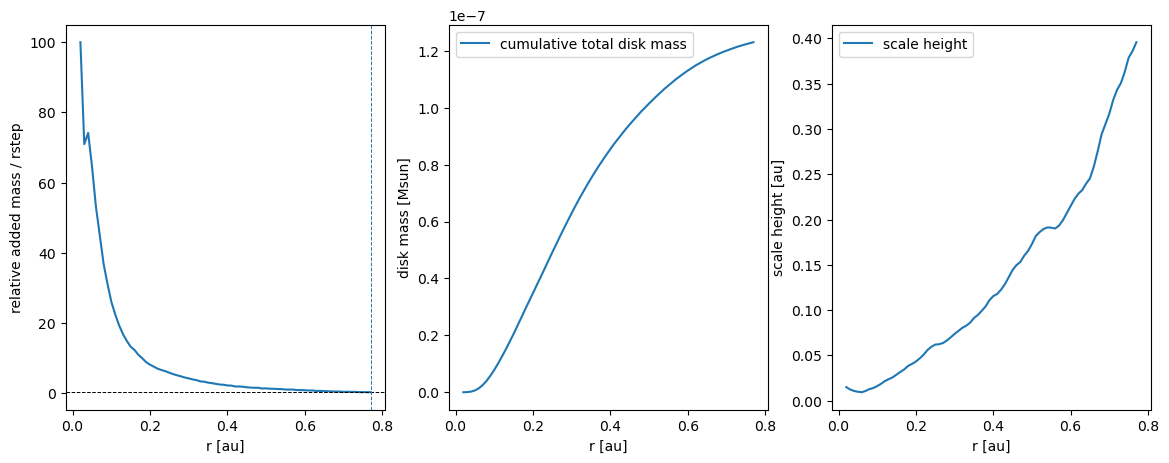

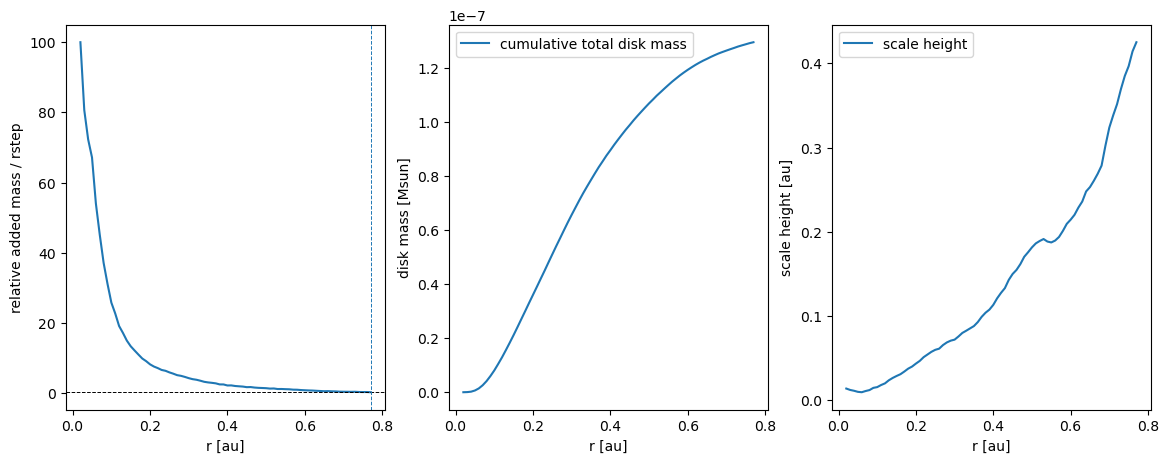

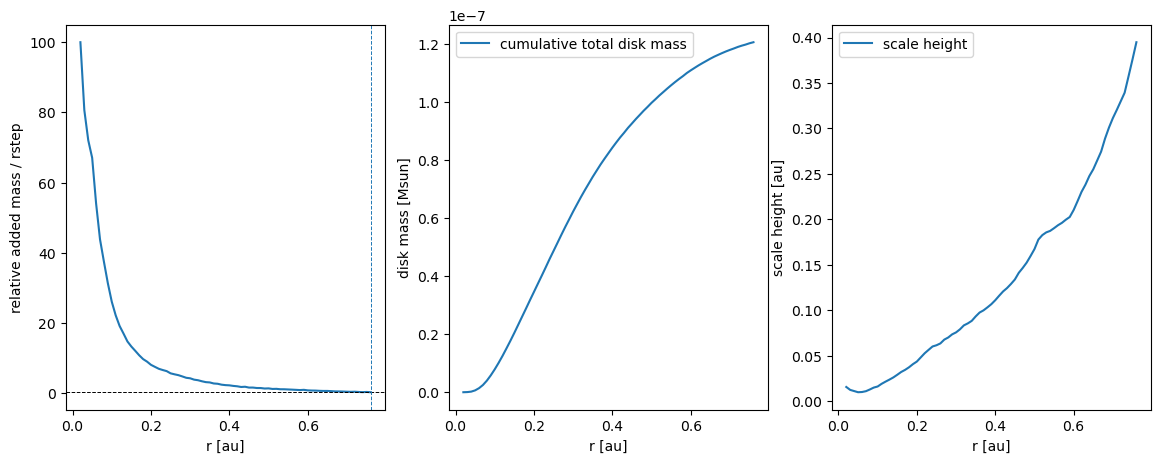

main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 276
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 280
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 288
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 296
main(run,dump,['1H','2H'],full=True,quadrants=False)
/lhome/jolienm/anaconda3/envs/plons/lib/python3.10/site-packages/numpy/core/fromnumeric.py:3464: RuntimeWarning: Mean of empty slice.
return _methods._mean(a, axis=axis, dtype=dtype,
/lhome/jolienm/anaconda3/envs/plons/lib/python3.10/site-packages/numpy/core/_methods.py:192: RuntimeWarning: invalid value encountered in scalar divide
ret = ret.dtype.type(ret / rcount)
[ ]:
'''
Example
'''
dir = '/lhome/jolienm/Documents/TierModels/R_Aql/cooling/binariesInPaper/finalAccrDisks/'
#Non-eccentric runs --> use final full dump; do calculations for both scale height options and for both the full thetaregion and the four quadrants seperately to study asymmetries
run = os.path.join(dir, 'v20e00_T3000_res8_racc01/')
dump = 292

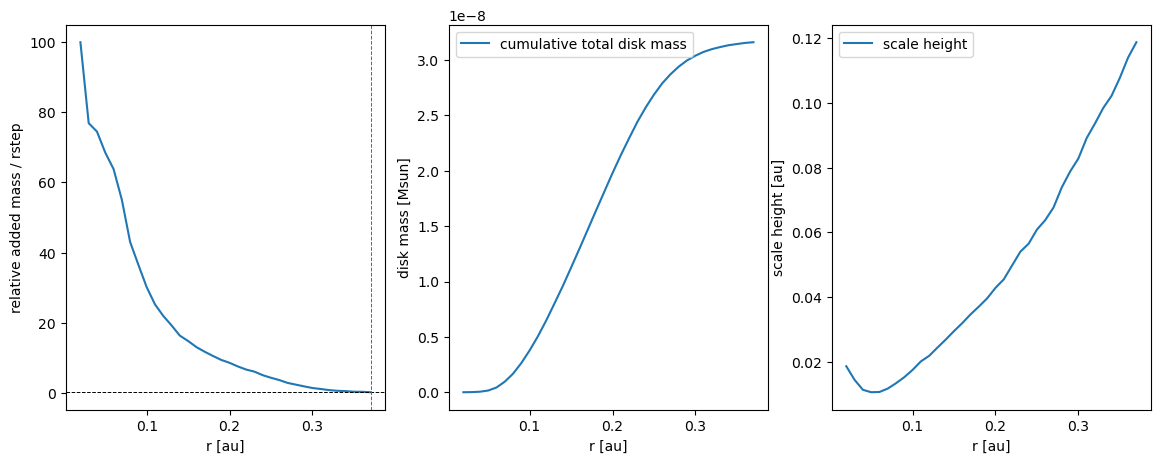

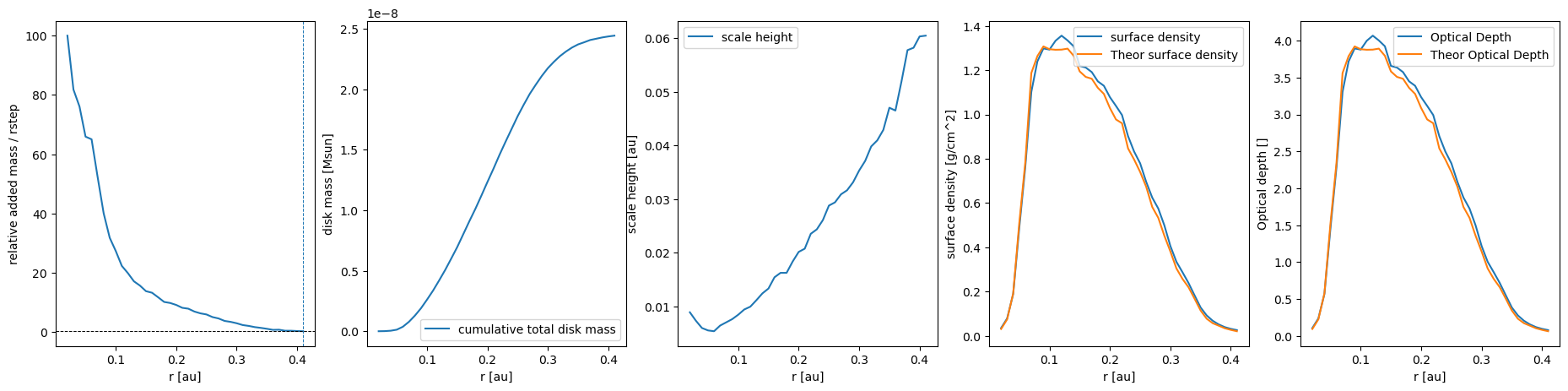

main(run,dump,['1H','2H'],full=True,quadrants=True)
run = os.path.join(dir, 'v10e00_T3000_res8_racc01/')
dump = 292
main(run,dump,['1H','2H'],full=True,quadrants=True)
run = os.path.join(dir, 'v05e00_T3000_res8_racc01/')
dump = 292
main(run,dump,['1H','2H'],full=True,quadrants=True)
##eccentric runs --> Select interesting dumps throughout last orbit, compare calculations for full theta region
run = os.path.join(dir, 'v05e50_T3000_res8_racc01/')
dump = 245
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 263
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 277
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 292
main(run,dump,['1H','2H'],full=True,quadrants=False)
run = os.path.join(dir, 'v10e50_T3000_res8_racc01/')
dump = 245
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 263
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 277
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 292
main(run,dump,['1H','2H'],full=True,quadrants=False)
run = os.path.join(dir, 'v20e50_T3000_res8_racc01/')
dump = 250
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 266
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 277
main(run,dump,['1H','2H'],full=True,quadrants=False)
dump = 292
main(run,dump,['1H','2H'],full=True,quadrants=False)
/lhome/jolienm/anaconda3/envs/plons/lib/python3.10/site-packages/numpy/core/fromnumeric.py:3464: RuntimeWarning: Mean of empty slice.
return _methods._mean(a, axis=axis, dtype=dtype,
/lhome/jolienm/anaconda3/envs/plons/lib/python3.10/site-packages/numpy/core/_methods.py:192: RuntimeWarning: invalid value encountered in scalar divide
ret = ret.dtype.type(ret / rcount)
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
[9]:
dir = '/lhome/jolienm/Documents/TierModels/R_Aql/cooling/binariesInPaper/finalAccrDisks/'
run = os.path.join(dir, 'v05e50_T3000_res8_racc01/')
dump = 263
main(run,dump,['1H','2H'],full=True,quadrants=False)
/lhome/jolienm/anaconda3/envs/plons/lib/python3.10/site-packages/numpy/core/fromnumeric.py:3464: RuntimeWarning: Mean of empty slice.
return _methods._mean(a, axis=axis, dtype=dtype,
/lhome/jolienm/anaconda3/envs/plons/lib/python3.10/site-packages/numpy/core/_methods.py:192: RuntimeWarning: invalid value encountered in scalar divide
ret = ret.dtype.type(ret / rcount)
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
!! At this theta direction, you are no longer in the disk or you set your maxH too small!!
[10]:
run = os.path.join(dir, 'v20e00_T3000_res8_racc01/')
dump = 292
main(run,dump,['1H','2H'],full=True,quadrants=True)
[11]:
run = os.path.join(dir, 'v20e50_T3000_res8_racc01/')
dump = 277
main(run,dump,['2H'],full=True,quadrants=False)
dump = 292
main(run,dump,['1H','2H'],full=True,quadrants=False)
[ ]:
