Construct plots of the tangential velocity distribution in function of radius within the disk, and compare to Keplerian velocity distribution

%load_ext autoreload
%autoreload 2

Importing packages

import math                     as math
import matplotlib.pyplot        as plt
import numpy as np
# import necessary plons scripts
import plons.AccrDisk           as ad

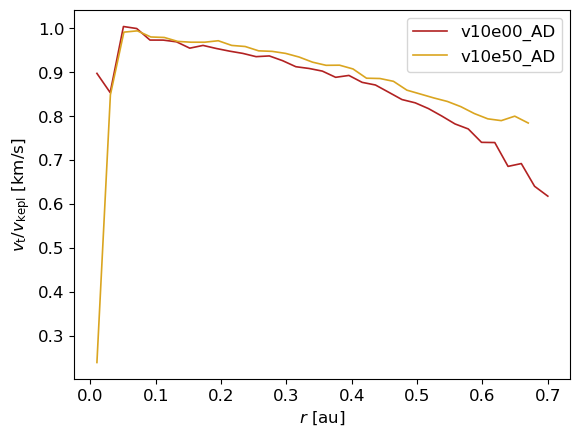

Plot vt/vkepl ifo radius, if you want for several models for comparison

%matplotlib inline
dump = 584
models = ['v10e00_AD','v10e50_AD']
rs  = [0.7,0.67]   #for crit03
colors = ['firebrick','goldenrod','navy']
loc = '/lhome/jolienm/Documents/TierModels/PlonsExampleModels/'
#rvalue to start from + also determines step for rr array
rstep = 0.02
rmin  = rstep/2
# rmin = 0.005
fig, ax = plt.subplots()

i = 0
for model in models:
    run    = str(loc)+str(model)+'/'
    dumpData,setup = ad.loadDataForSmoothing(run,dump)
    rmax = rs[i]
    ad.plot_vt_divided_vtKepl(ax,rmax,rmin,rstep,dumpData,model,colors,i)
    i = i+1
ax.legend(fontsize = 12)
ax.set_xlabel(r'$r$ [au]',fontsize = 12)
ax.set_ylabel(r'$v_{\rm t}/v_{\rm kepl}$ [km/s]',fontsize = 12,rotation = 90)
ax.tick_params(axis='x', labelsize=12)
ax.tick_params(axis='y', labelsize=12)
fig.show()
# make directory to save results in
wdir = os.path.join(loc,'plotsAnalysis/')
!mkdir -p $wdir

plt.savefig(loc+'plotsAnalysis/vt:vtKepl.png')
# plt.close()

Orbital phase is  [1.999]  pi
Orbital phase is  [2.]  pi

/tmp/ipykernel_12052/3096974035.py:25: UserWarning: Matplotlib is currently using module://matplotlib_inline.backend_inline, which is a non-GUI backend, so cannot show the figure.
  fig.show()
/tmp/ipykernel_12052/3096974035.py:25: UserWarning: Matplotlib is currently using module://matplotlib_inline.backend_inline, which is a non-GUI backend, so cannot show the figure.
  fig.show()
1016.19s - pydevd: Sending message related to process being replaced timed-out after 5 seconds

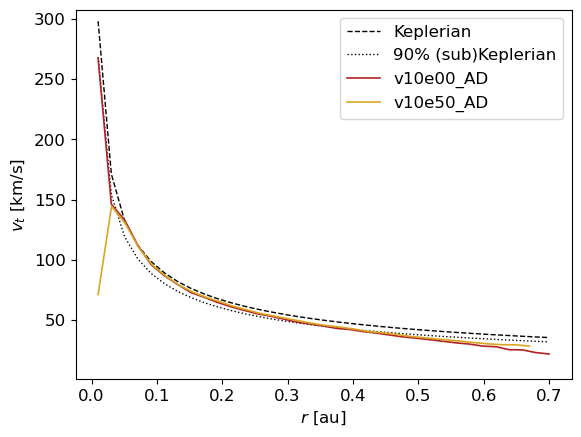

Plot vt, vkepl and 0.9vkepl ifo radius

%matplotlib inline
dump = 584
models = ['v10e00_AD','v10e50_AD']
rs  = [0.7,0.67]
colors = ['firebrick','goldenrod','navy']
loc = '/lhome/jolienm/Documents/TierModels/PlonsExampleModels/'
fig, ax = plt.subplots()
rstep = 0.02
rmin  = rstep/2
lineStyles=['-','-','-','-']


k_vt   = np.array([])
r_vt_max = np.array([])
i = 0
for model in models:
    run    = str(loc)+str(model)+'/'
    dumpData,setup = ad.loadDataForSmoothing(run,dump)
    rmax = rs[i]#-rstep/2
    r_vt_max = ad.plot_vt_vKepl(ax,rmax,rmin,rstep,dumpData,model,k_vt,r_vt_max,colors,lineStyles,i)
    i = i+1
ax.legend(fontsize = 12)
ax.set_xlabel(r'$r$ [au]',fontsize = 12)
ax.set_ylabel(r'$v_t$ [km/s]',fontsize = 12,rotation = 90)
ax.set_ylim(1,np.max(r_vt_max)+40)
ax.tick_params(axis='x', labelsize=12)
ax.tick_params(axis='y', labelsize=12)
fig.show()
plt.savefig(loc+'plotsAnalysis/vt_vtKepl.png')
# plt.close()

Orbital phase is  [1.999]  pi
Orbital phase is  [2.]  pi

/tmp/ipykernel_12052/1276367016.py:28: UserWarning: Matplotlib is currently using module://matplotlib_inline.backend_inline, which is a non-GUI backend, so cannot show the figure.
  fig.show()

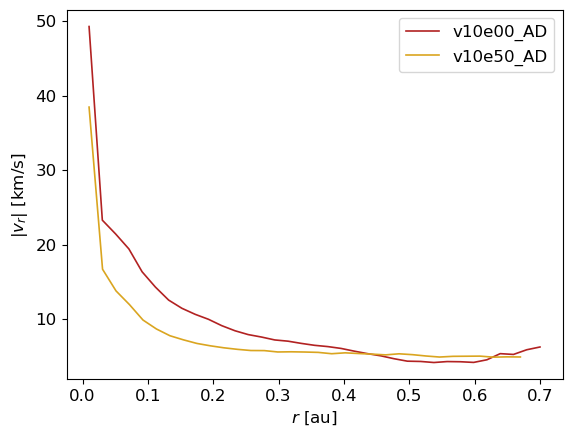

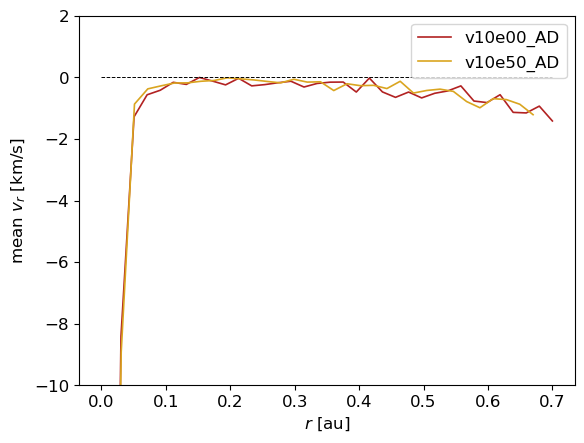

Plot the absolute value radial velocity, and the mean (not absolute value) radial velocity, in function of radius within the disk

This can be usefull to get an idea of the radial velocity values, and of the inward/outward general trend of the radial velocity

%matplotlib inline
dump = 584
models = ['v10e00_AD','v10e50_AD']
colors = ['firebrick','goldenrod','navy']
loc = '/lhome/jolienm/Documents/TierModels/PlonsExampleModels/'
fig1, ax1 = plt.subplots()
fig2, ax2 = plt.subplots()
rstep = 0.02
rmin  = rstep/2
rs  = [0.7,0.67]


i = 0
for model in models:
    run    = str(loc)+str(model)+'/'
    dumpData,setup = ad.loadDataForSmoothing(run,dump)
    rmax = rs[i]#-rstep/2
    ad.plot_vrmean(ax1,ax2,rmax,rmin,rstep,dumpData,model,colors,i)
    i = i+1

ax1.hlines(0,0,np.max(rs),linewidth = 0.7,linestyle = '--',color = 'k')
ax1.legend(fontsize = 12)
ax1.set_xlabel(r'$r$ [au]',fontsize = 12)
ax1.set_ylabel(r'mean $v_r$ [km/s]',fontsize = 12,rotation = 90)
ax1.set_ylim(-10,2)
ax1.tick_params(axis='x', labelsize=12)
ax1.tick_params(axis='y', labelsize=12)
fig1.show()
fig1.savefig(loc+'plotsAnalysis/mean_vr.png')

ax2.legend(fontsize = 12)
ax2.set_xlabel(r'$r$ [au]',fontsize = 12)
ax2.set_ylabel(r'$|v_r|$ [km/s]',fontsize = 12,rotation = 90)
# ax1.set_ylim(-10,2)
ax2.tick_params(axis='x', labelsize=12)
ax2.tick_params(axis='y', labelsize=12)
fig2.show()
fig2.savefig(loc+'plotsAnalysis/mean_abs_vr.png')

Orbital phase is  [1.999]  pi
Orbital phase is  [2.]  pi

/tmp/ipykernel_12052/3917441896.py:28: UserWarning: Matplotlib is currently using module://matplotlib_inline.backend_inline, which is a non-GUI backend, so cannot show the figure.
  fig1.show()
/tmp/ipykernel_12052/3917441896.py:37: UserWarning: Matplotlib is currently using module://matplotlib_inline.backend_inline, which is a non-GUI backend, so cannot show the figure.
  fig2.show()
